Maximum freedom of choice!

Sliding doors system, aluminium and crystal, achievable "measure" in the version with wall-mounting or ceiling suspension with lateral anchor, in the presence of suitable ceilings or very high ceilings.

Glass doors with shaped / square aluminium profile, whole or divided by crossbars, supplied with a double handle for the adjustment of the beam width, this system adapts to any type of wall or ceiling.

The pendant versions are only made with maxi self-supporting beam containing double track, which allows a vent height adjustment of 30 mm.

The wall or ceiling versions are made with either the cover track multiple light accompanied by housing both the maxi beam version with 1 or 2 tracks.

Finishings

Metal Structure

Glass

Optionals with extra

Technical Features

Structure

  • Silver anodized aluminium
  • Enamelled aluminium

Profile

aluminium

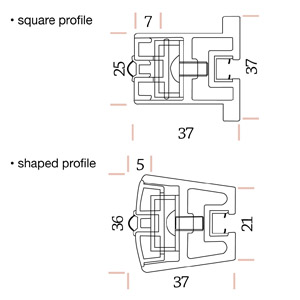

  • Square, functions as a handle
  • Shaped, including insertion of 2 external/interior handles

Glass

Thickness 5 mm. tempered o 3+3 mm. stratified.

  • cat."A": transparent (UNI 7142)
  • cat."P": extralight (UNI 7142)
  • cat."Q": transparent fumè-bronze (UNI 7142)
  • cat."B": sandblasted natural (UNI 7142)
  • cat."C": sandblasted grey-bronze (UNI 7142)
  • cat."D": covering coloured in shiny version or glazed antifingerprint 5mm. with extra (UNI 7142): 1 side smooth, 1 side painted.
  • cat. "E": extralight covering coloured in shiny version or glazed antifingerprint 5 mm. with extra (UNI 7142): 1 side smooth, 1 side painted.
  • cat. "F": milk white stratified 3+3 mm. (UNI 7142) between the two panes is inserted a thin invisible film that adheres to both surfaces. sound reduction up to 30dB (decibels): 2 smooth sides identical.
  • cat. "S": sandblasted extralight
  • cat. "M": bronzo or fumè mirror
  • cat. "H": coloured extralight stratified

Optionals with extra

  • Glass RAL colour
  • Cross-bar for doors
  • Glass decorate rows up from 3 to 10 cm.
  • Pusher with lower guiding wheel

Technical Data sheet Info
